560*610mm Offline PCBA Flux Cleaning Machine 2 layers cleaning basket machine SMT PCBA cleaner machine

Machine Type : HIGH PRESSURE CLEANER

Applicable Industries : electronic factory

Condition : New

Place of Origin : Guangdong, China

Brand Name : ME-5600 off-line PCB/PCBA Cleaning Machine

Use : PCBA Cleaning Machine

Cleaning Process : PCBA Cleaning Machine

Cleaning Type : Industrial Ultrasonic Cleaner

Industry Used : Electronic Industry

Material : PCBA Cleaning Machine

Power : Pneumatic Stencil Cleaner

Dimension(L*W*H) : L1300 x W1200 x H850(mm)

Warranty : 1 Year

Max. Pressure : PCBA cleaner

Marketing Type : PCBA cleaner

Machinery Test Report : PCBA cleaner

Video outgoing-inspection : PCBA cleaner

Warranty of core components : PCBA cleaner

Core Components : PCBA cleaner

Key Selling Points : PCBA cleaner

Weight (KG) : 600 kg

Product name : off-line PCB/PCBA Cleaning Machine

Power/Air supply : AC380V/50A/50HZ,30KW,0.5Mpa

Cleaning basket size : L610 x W560 x H100 (mm) x2 layers

Spray tank capacity : 17L

Concentrate capacity : 32L

Dilution capacity : 60L

Clean time : 5~20min

Rinse time : 1~2min/times

skype : sensenhenhao

whatsapp/wechat : +8613424013606

Packaging Details : off-line PCB/PCBA Cleaning Machine package+plywood case

Port : shenzhen

Supply Ability : 100 Set/Sets per Month off-line PCB/PCBA Cleaning Machine

Price : $35,000.00/sets 1-1 sets

Contact Now

560*610mm Offline PCBA Flux Cleaning Machine 2 layers cleaning basket machine SMT PCBA cleaner machine

skype:sensenhenhao,whastapp/wechat:+8613424013606

off-line PCB/PCBA Cleaning Machine Description:

560*610mm Offline PCBA Flux Cleaning Machine 2 layers cleaning basket machine is an off-line PCBA cleaning mahcine. It is a compact, energy-saving and environmental protection machine.

SME-5600 is used to wash off flux residual, solder balls, partichles on PCBA, such as: rosin flux, non-clean flux,water-soluble flux.Mainly used in military,aviation, aerospace, medical, new energy, automotive electronics industries, especially suitable for small amount, multiple types PCBA cleaning.

SME-5600 advantages:


1. Throughly clean rosin flux, water-soluble flux , non-clean flux ,solder paste and other organic and inorganic contaminations on PCBA.


2. 2-layers cleaning basket: 610mm(L) ×560mm(W) × 100mm(H) x2 layers.


3. All processes are visible through a large observation window.


4 .Easy operation interface, quick setting clean parameters. Different passwords can be set.


5. Inner filter makes liquid used repeated.

6.Real-time measure DI water resistivity and monitoring cleaning effect. Resistivity range is 0~18 MΩ.


7. The remaining liquid in the pump and pipes are blown off by compressed air and flow back to cleaning tank. This function saves detergent up to 50%.


8. High standard cleanliness, ionic contamination completely meets the requirement of IIPC-610D I class.


9. Totally SUS304 structure, solide, acid and alkali corrision-proof


SME-5600 spec:

ITEM SPEC
Cleaning basket size L610xW560xH100mmx 2layers
Diluent liquid tank capacity 60L
Spray liquid tank capacity 18L
Concentrate tank capacity 30L
Cleaning time 5~20min
Rinse time 1~2 min/times
Rinse times 1~10times
Dry time 10~30min
Diluent liquid heat temp room temp ~60ºC
PCB dry time room temp~99ºC
Resistivity range 0~18MΩ
Liquid filter 0.2um
DI water filter 0.2um
Air filter 10um
Vent size φ76XH50(mm)
Power supply AC380, 3 Phases, 50/60Hz, 30KW
Air supply 0.5Mpa, 400L/Min
Machine size L1300xW1200x1850(mm)
Machine weight 600KG

Customer Question & Answer

Q1: What is the cycle time of SME-5600 batch cleaning machine?

A1: Total 30~45min. wash 10min+rinse 10min+dry 10~25min.

Q2: What liuqid can be used in SME-5600 to clean PCBA?

A2: It depends on electonical components and solder paste on your PCBA. Water-based PCBA cleaning liquid wash, DI water rinse.

Q3: Have many pcbas can SME-5600 clean in one cycle?

A3: L200*W100mm size PCBA for example, it can clean 30~40pcs.

Q4: Does the PCBAs need to bake after wash, rinse and dry process in the machine?

A4: Sure, PCBAs after clean need to put into electric oven and bake for 2 hours at 100~110℃ or 4hours at 80~90℃to make the PCBA totally dry.

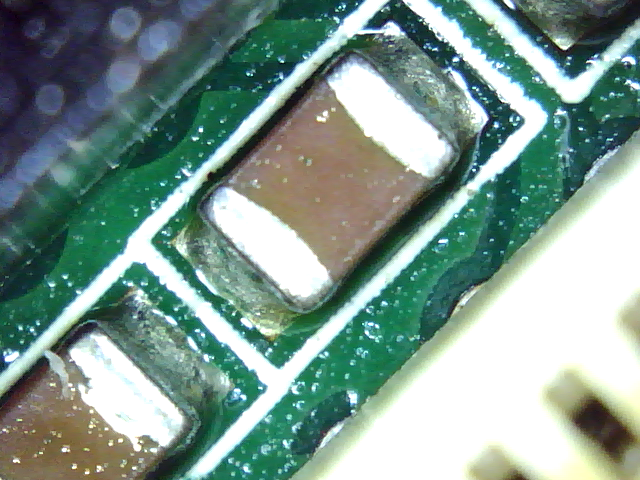

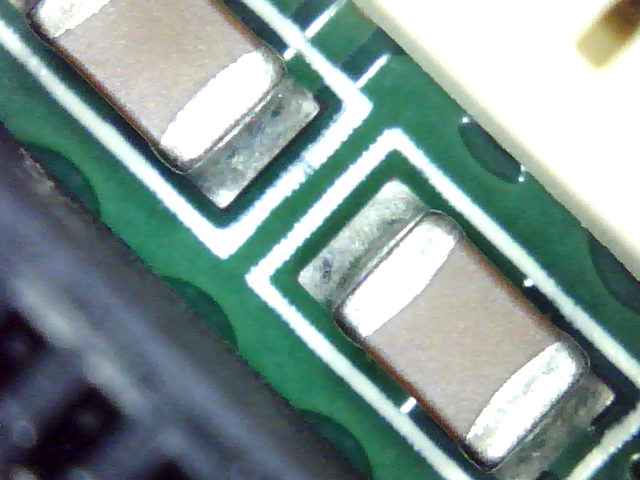

Comparison pictures before clean and after clean:

560*610mm Offline PCBA Flux Cleaning Machine 2 layers cleaning basket machine SMT PCBA cleaner machine560*610mm Offline PCBA Flux Cleaning Machine 2 layers cleaning basket machine SMT PCBA cleaner machine

off-line PCB/PCBA Cleaning Machine picture show:

560*610mm Offline PCBA Flux Cleaning Machine 2 layers cleaning basket machine SMT PCBA cleaner machine560*610mm Offline PCBA Flux Cleaning Machine 2 layers cleaning basket machine SMT PCBA cleaner machine
